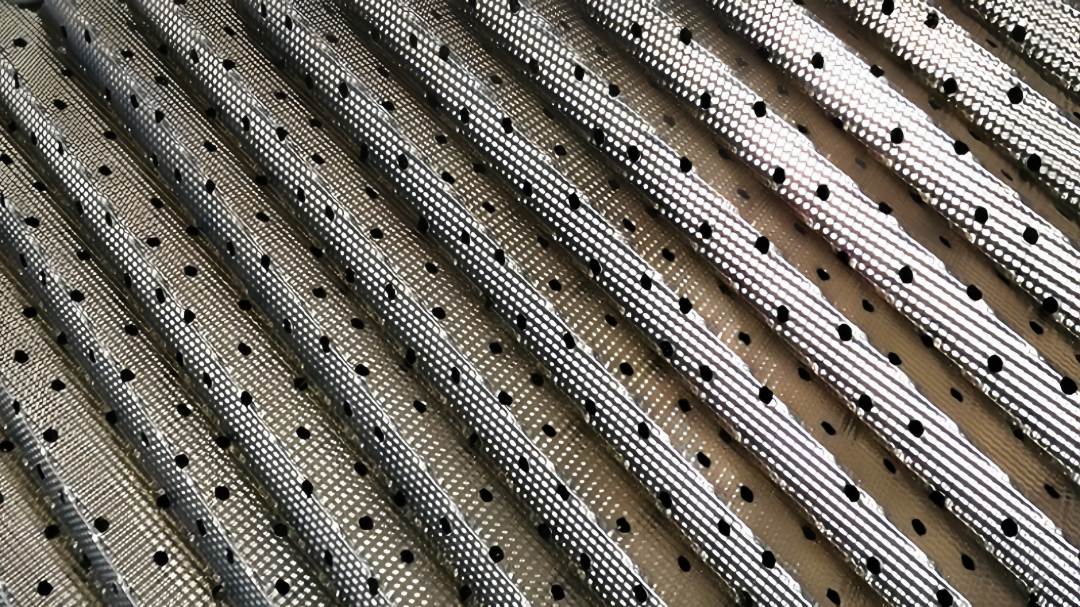

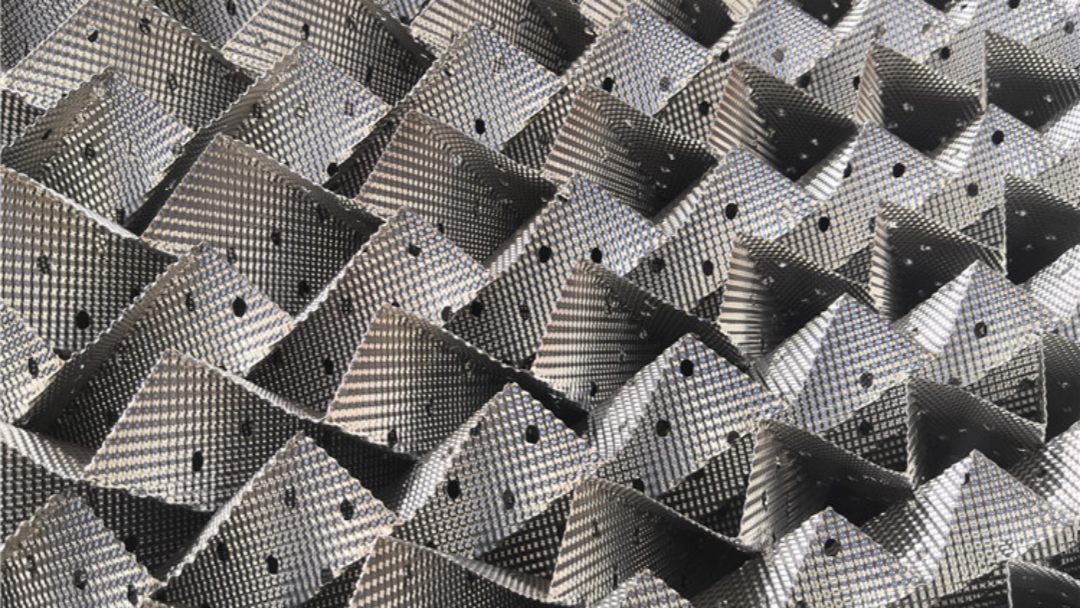

Figure 1: 250Y (Left) vs 500Y (Right) geometries.
Quick Guide: Based on FXSINO Datasheet Rev.2024-06. This guide covers the critical differences between 250Y and 500Y packing to help you optimize column efficiency and reduce energy costs.
The model number defines performance. Here’s the breakdown:
Focus on these three metrics when evaluating options:
| Metric | Why It Matters |
|---|---|
| HETP (Height Equivalent to a Theoretical Plate) | Lower is better. Determines how tall your column needs to be. |
| Pressure Drop (ΔP) | Lower saves energy. Critical for vacuum distillation to reduce boiling points. |
| F-Factor | Measures vapor capacity. Helps prevent flooding. |
Choosing the wrong alloy leads to premature failure. Use this quick reference:
Structured packing is useless without a good distributor. A cheap or worn-out distributor causes channeling. Always pair new packing with a high-quality pan distributor (±5% uniformity).
Unlike random packing, structured packing must be level. A 1° tilt causes vapor bypassing. Use a laser level during installation to ensure perfect horizontality.
Q: Can I use 250Y in a vacuum column?
A: Yes. Its low pressure drop makes it suitable, but ensure your F-factor calculations account for the low operating pressure.
Q: Is structured packing better than random packing?
A: For efficiency and low pressure drop, yes. For dirty services with solids, random packing (like HyPak) is often a safer choice due to its open structure.
Access complete hydraulic curves and material specs for 250Y & 500Y packing.
Contact FXSINO: jackieqiu9202@gmail.com | +86 18507999558
About Jackie Qiu
Senior Process Engineer at FXSINO. 10+ years optimizing mass transfer for petrochemical plants.
